Features
- 84hp wide with two 3U rows and a 1U row.
- Powder coated aluminum construction

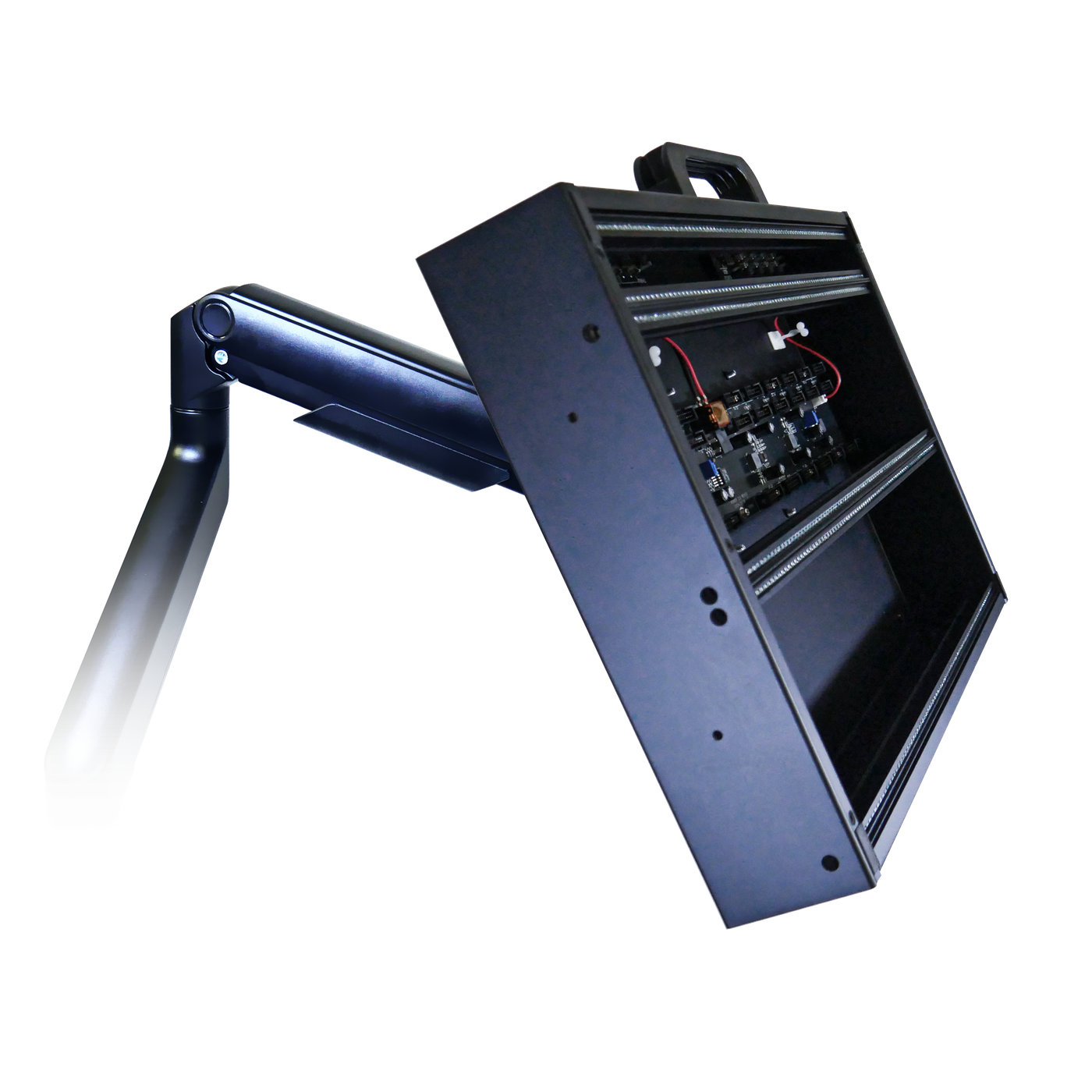

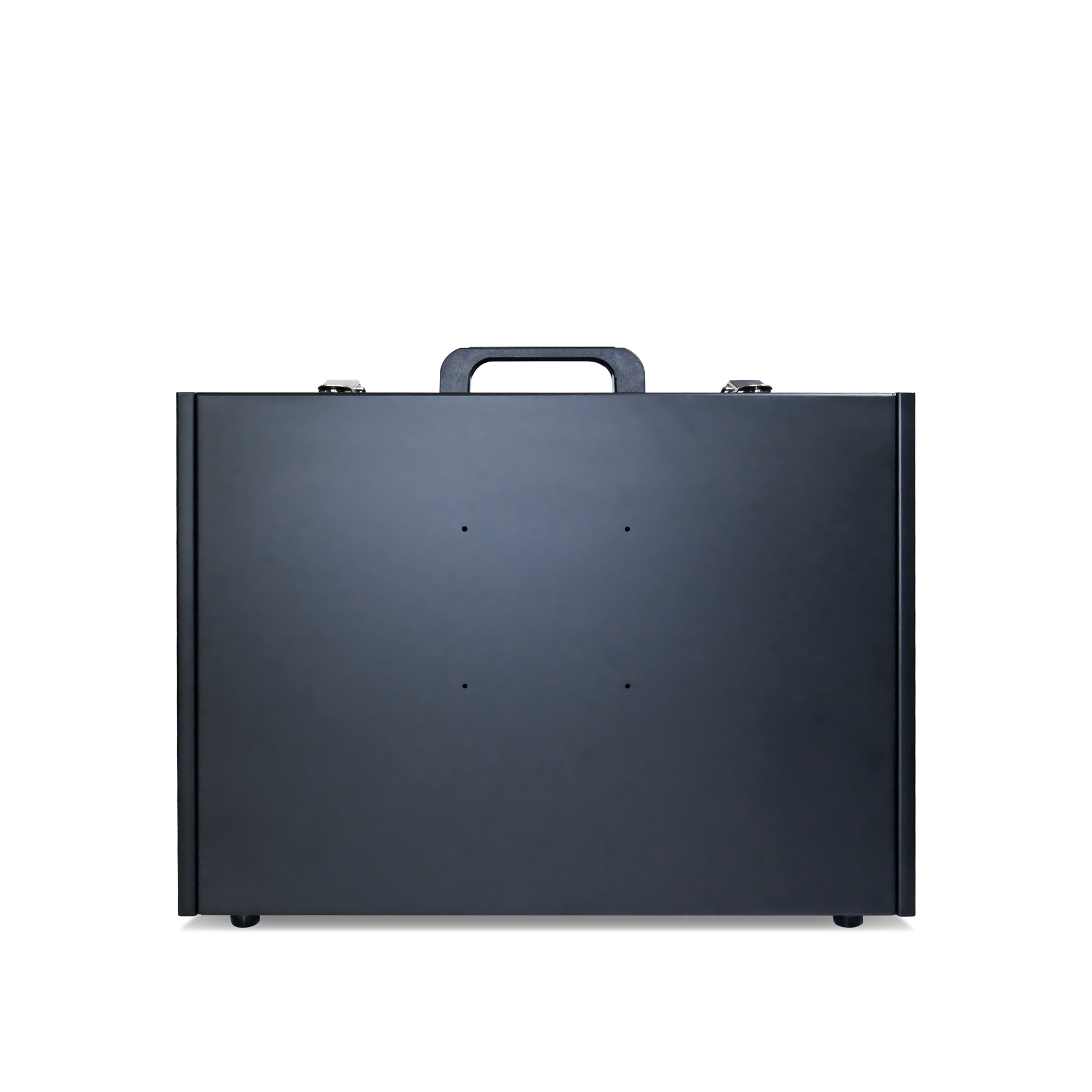

- VESA mount compatible (100mm x 100mm)
- Plastic handle for easy mobility
- Metal feet can be installed to support multiple angles of jamming.

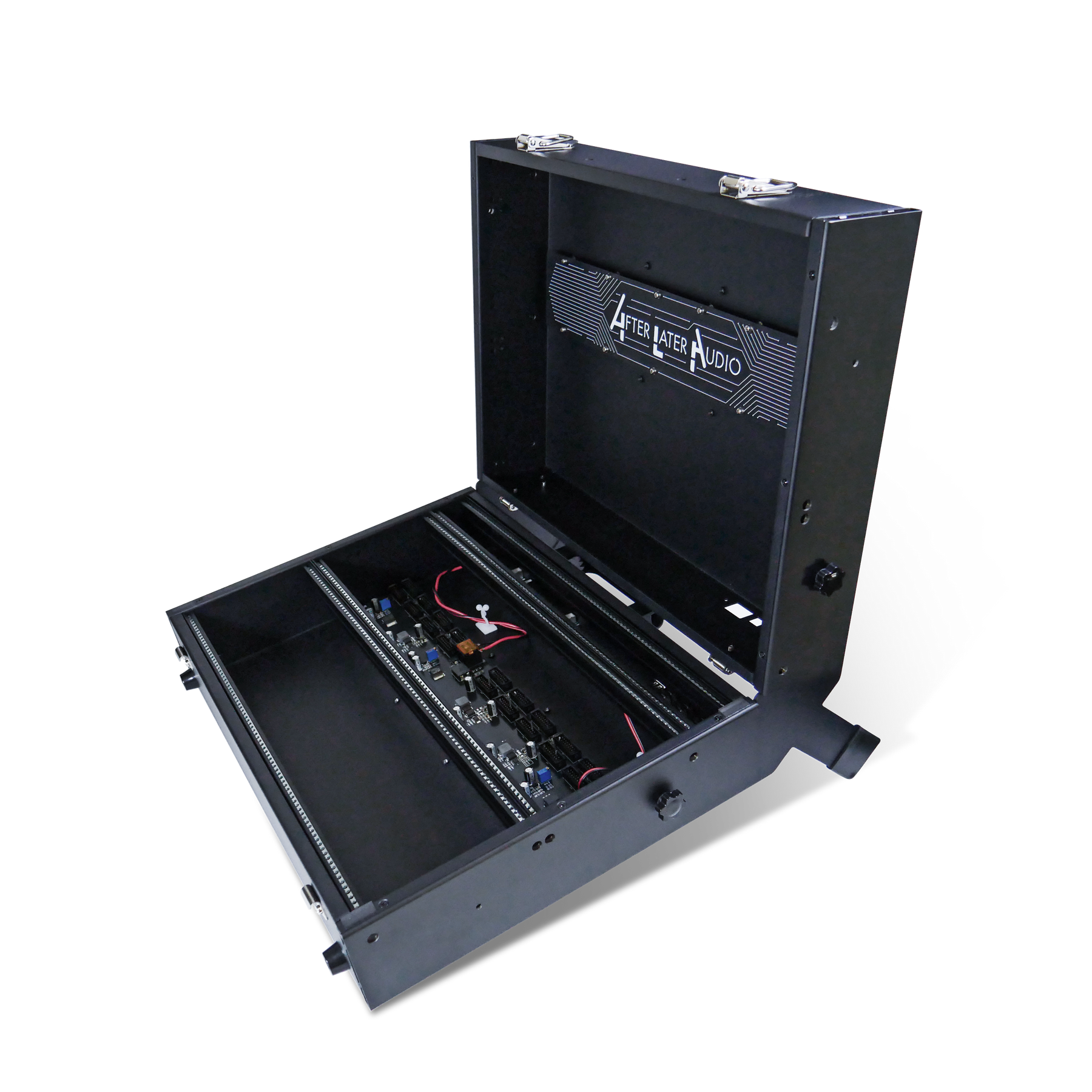

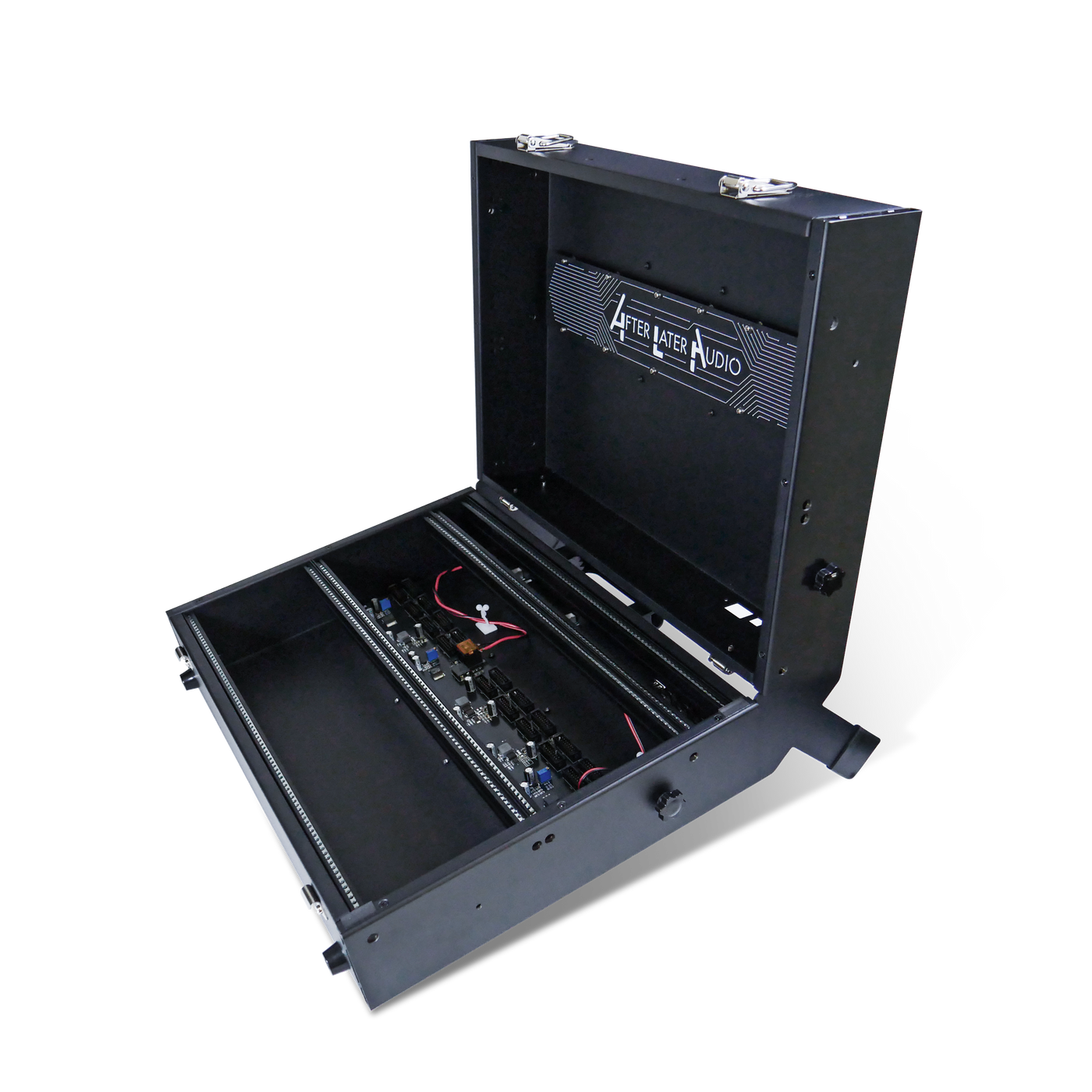

- Secure latching lid with enough depth to keep your patches patched
Connectivity

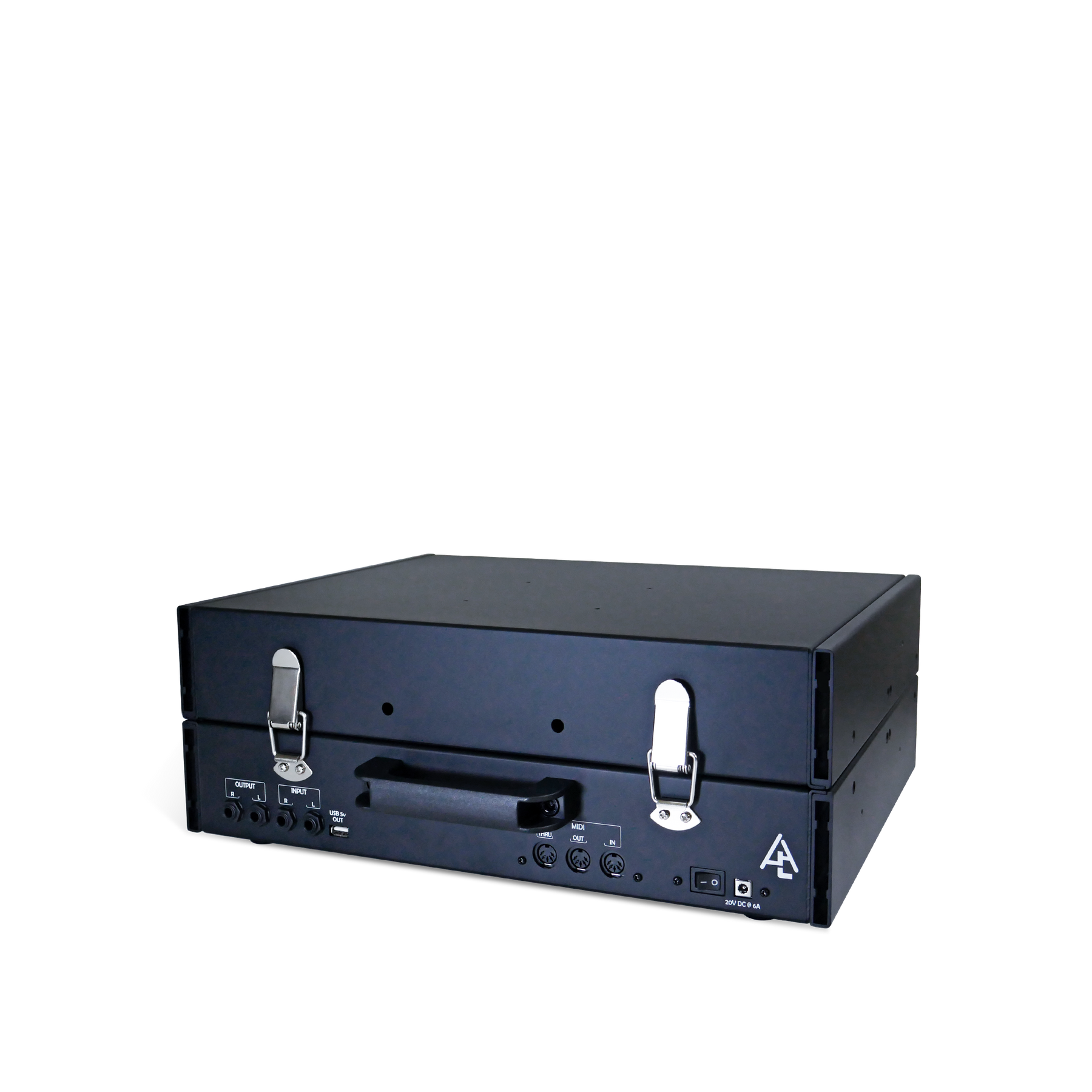

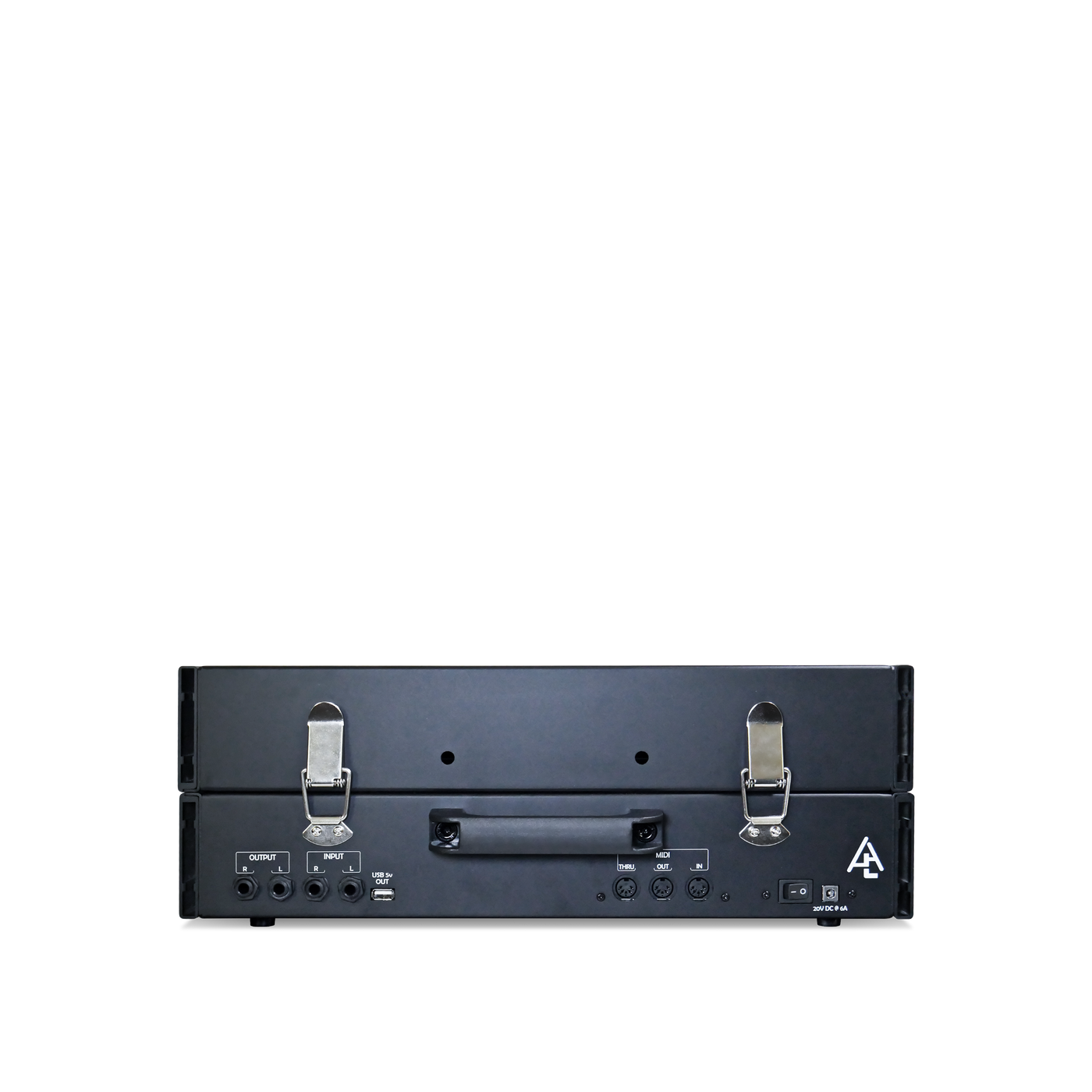

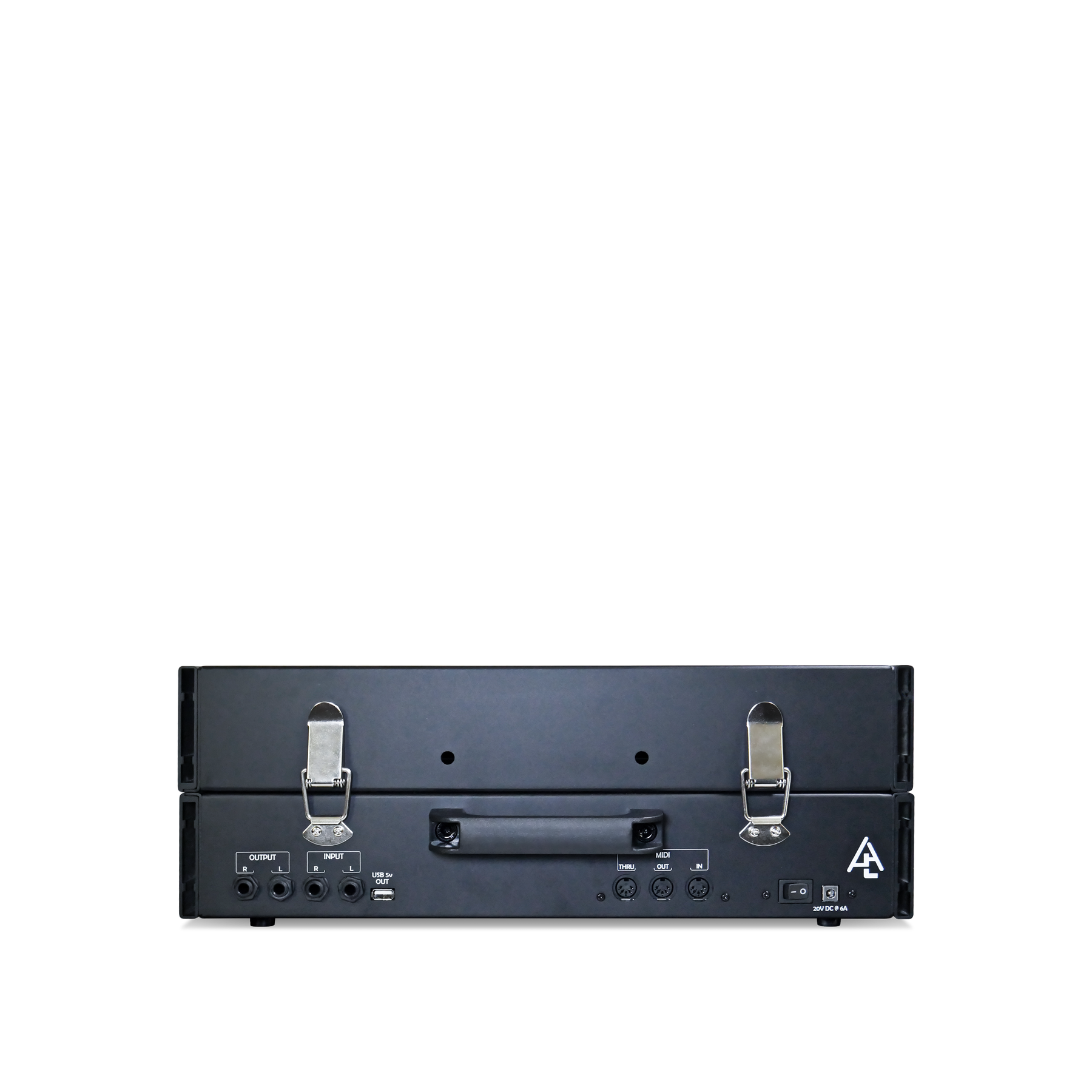

- Audio jacks - set of four jacks for stereo in and stereo out.
- MIDI jacks - DIN jacks to support IN, OUT, and THRU MIDI.
- USB power - can be used for a lamp to light your case or to charge your phone while recording your set.
Dimensions
- 447mm x 334mm x 169mm
- 74mm depth for 1U and bottom 3U row
- 52mm depth for middle 3U row
Power
- +12V - 3A (with plenty of allowance for in-rush current)
- -12V - 3A
- +5V - 3A (shared with USB power)
- 30 shrouded power headers
In The Box
- Main case
- Lid
- Metal feet
- Power adapter 20V at 6A
Connect the Case Jacks
- For MIDI ports – Threads or Ornate Criminal can be connected to the case jacks. The connection requires a 2x5 IDC cable.
- For audio ports – Cloverleaf, Bartender, or USB-2CH can be connected to the case jacks. The connection requires a two 2x3 IDC cables.
- The cases use the Intellijel the pinout so any IJ or Befaco modules should also work.
Custom Lid Panel
- You can make a custom PCB panel to put inside the lid. See our Github for more details
Note that the 84hp case will not have a lid expansion like the 104hp case does.
