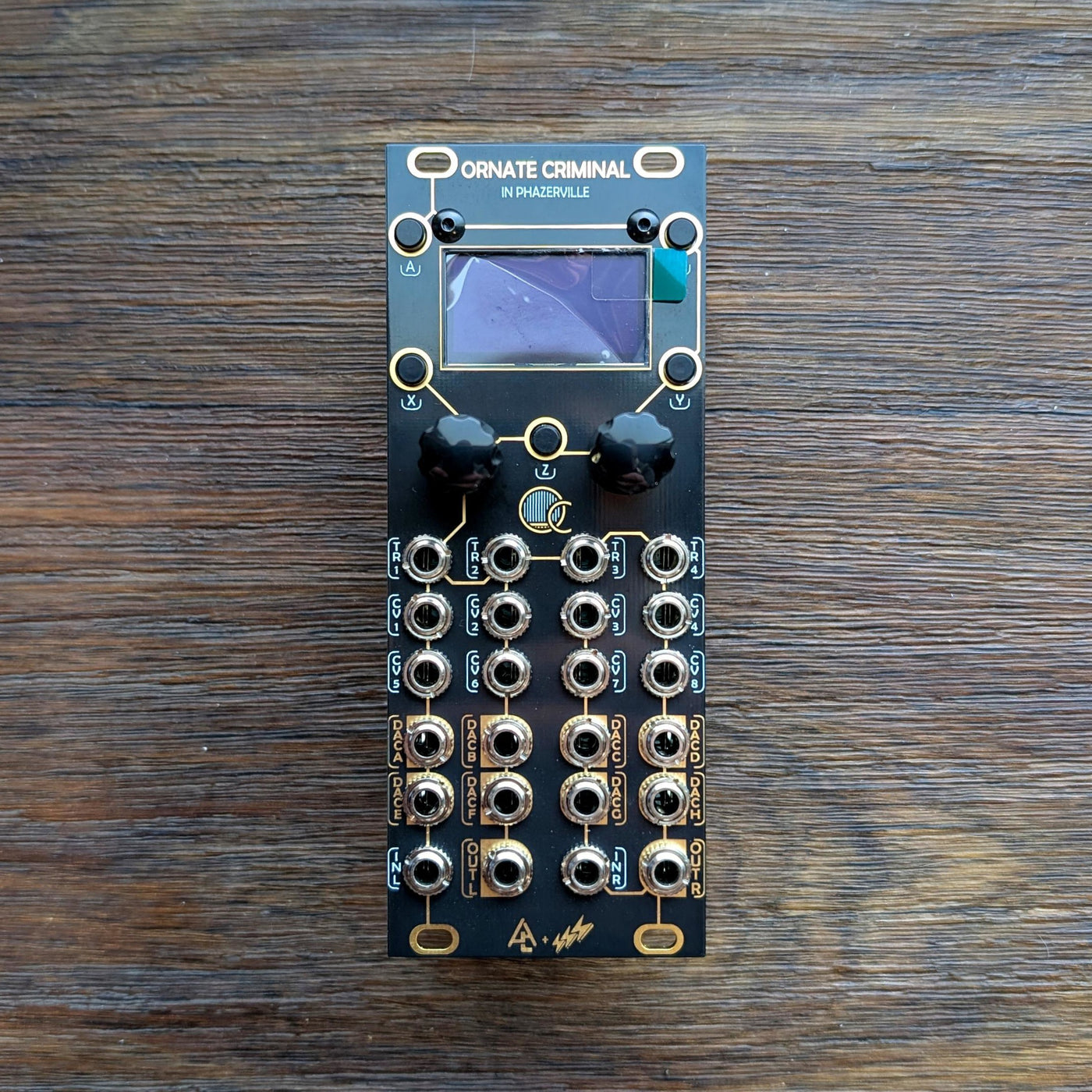

Ornate Criminal

We will have a few units available each week over the coming weeks while we wait for the main batch to arrive.

Based on the OC Teensy 4.1 reference design from Paul @ PJRC and runs the Phazerville firmware from Nick and crew.

8 CV Outs
8 CV Ins
4 Trig Ins
Stereo audio in
Stereo audio out

There are headers that will connect to a (future) MIDI expander that has 3.5mm jacks for IN/OUT and USB host/device.  There is also an I2C QWIIC connector for those looking to tinker.

Please note: The first small batches of units will be limited to 4.2V on the USB host circuit.  There will be a fix for this in the future but it will require soldering some 0603 parts.
